![Manufacturer Newest FC-St Fiber Optic Light Adapter, Red Hat Fiber Optic Adapters (FC) Optical Adaptor](/uploads/s/bc0ba7cc014b483188c0eb3e4de3303d.webp)
Manufacturer Newest FC-St Fiber Optic Light Adapter, Red Hat Fiber Optic Adapters (FC) Optical Adaptor
LC SC FC ST FC Duplex Simplex Singlemode Multimode Fiber Optic Adapter Product Description fiber Optic Adapters are an i
Send your inquiryDESCRIPTION
Basic Info
Model NO. | Fiber Optic Adapter |
Application | Fiber Distribution Frame, Network Equipment, Fiber Module |
Light Source TYPE | LED/ Laser |
Connector Type | FC, Sc, St, LC, Mu, MTRJ, DIN, MPO |
Brand | Fiber Optic Adapter |
Return Loss | >60dB for APC |
Temperature Stability | <0.2dB |
Insert Loss | <0.2dB |
Mating Durability (500cycles) | <0.2dB |
Transport Package | 100PCS/Bag or OEM |
Trademark | YIXUN or OEM |
Origin | China/Zhejiang |
HS Code | 85367000 |
Production Capacity | 10000000 PCS/Month |
Product Description
LC SC FC ST FC Duplex Simplex Singlemode Multimode Fiber Optic Adapter
fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to mate two connectors. Fiber Optic adaptors are available for all standard connector types in both singlemode and multimode including Simplex and duplex versions. Our fiber optic adapters are made with high precision machines which ensure precise alignment for the connectors when they are plugged in. fiber Optic Adaptors are color coded allowing easy identification of the adaptor type. We also offer hybrid and other special types of fiber optic adapters, such as Bare, shuttered and metal housing fiber optic adapters.
Standards Compliance
TIA/EIA-568-C.3 TIA/EIA-604 RoHS, REACH SvHC compliant
Features
▪ Made of high quality Zirconia ceramic sleeves▪ 100% tested on optical performance (Insertion Loss & Return Loss)▪ End-face geometry requirement complies to Telcordia GR-326-CORE▪ For end-to-end fiber cable connectivity▪ Available in singlemode and multimode, including APC and various colours▪ Female to female & male to female adapters available▪ Hybrid, Shuttered and Metal adapters available▪ Coloured for easy indentification
Environmental & Mechanical Data
Operating Temperature | -40 to +75º C |
Storage Temperature: | -40 to +85º C |
Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
High temperature (61300-2-18) | 70˚c for 96Hrs, <0.4dB change |
Damp Heat (61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
Ordering Information
Using the available configurations amend/create product codes using the formula below.Part Number: XX-AA-(BB)-(CD)E(FG)CL
Ordering Guide
XX | Adapter Type Code | AD, HAD, MAD |
AA | Connector Type A (Female or Male) | FP,SP,SA,LP |
BB | Connector Type B (Female) | FP,SP,SA,LP |
C | Mode | SM=Singlemode MM=Multimode OM3=Multimode 10G |
D | Fiber Type (only apply to MAD Type Adapter) | OM1=62.5/125 OM1 OM2=50/125 OM2 SM=9/125 Singlemode |
E | Fiber Count | SX=Simplex, DX=Duplex, QD=Quad |
F | Adapter Shape | F= flange type, S =Square Type, D=D type |
G | Material | M=Metal, P=plastic |
CL | Color(CL) | Blue for Singlemode PC Standard, Beige for Multimode Standard, Aqua for OM3/OM4 Standard and Green for Singlemode APC.(Metal Structure Unsuited) |
Adapter Type Code
AD | Standard Adapter (Female to Female Adapter) |
HAD | Hybrid Adapter(Female to Female Adapter) |
MAD | Male To Female Adapter |
BAD | Bare Adapter |
SAD | Shuttered Adapter |
Connector Type Code
FP | FC/PC,FC/UPC | FA | FC/APC |
SP | SC/PC, SC/UPC | SA | SC/APC |
TP | ST/PC, ST/UPC | TA | ST/APC |
LP | LC/PC, LC/UPC | LA | LC/APC |
MU | MU | MT | MTRJ |
DN | DIN | E2 | E2000 |
YIXUN is professional supplier and exporter with 12 years Experience in Communication Industry.
Manufacture Lan Cable, Coaxial Cable, Fiber Optic Cable, Telephone cable, Alarm cable and Accessories,with Certificates of ISO9001, CPR, UL, CE, RoHS, ETL.In the past 10 years, We export to more than 70 countries, entered into the market of Europe, Australia, South America and Southeast Asia.Our products have been widely installed in Telecom companies and many distributors around the world.We're a business dedicated to offer you superior customer service, applying educated business principles tokeep our business as well as our clients companies. With understanding the needs of each one of our customers,YIXUN is entirely committed to meeting individual customer needs.
Why Choose Us
YIXUN knows deep down that our purpose is to meet the needs of our customers.We learn about the supply chain and know that the difficulties we are facing are also the same as those of our customers.In this way, by understanding what our own needs are, we can think outside the box to understand the needs of our customers.If you talk with YIXUN, we will do exactly according to documents: How to find an honest supplier? (We will send you if you need).We hope that customers can feel relaxed and happy when negotiating with our company, not only can complete the procurement work efficiently and worry-free but also to improve your ability of re-sell.
What kind of service we can provide?1.Latest market information per month2.Market research report3.Solutions of supplier's dishonest problem4.Solutions of supplier's poor service5.Soulutions of supplier's quality control problem 6.Soulutions of supplier's lead time problem 7.Support solutions replace price list8.Channels for complaints9.25 Years of quality warranty assurance. 10.Market protection. 11.Solutions of order follow-up. 12.Support sales methods and strategies.
FAQ
(1)Q: Are you a manufacturer or a trading company?
A: We are a Industry and trade integration with 12 years production experience.
(2)Q: Can you print our logo or company name in cable?
A: Yes,we can print your logo or company name on products.
(3)Q:Can you accept customize or design for us?
A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(4)Q:Is it possible to get a free sample ?
A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(5)Q:What is your MOQ ?
A: Usually, MOQ is 100 thousand meters.
(6)Q:If I want to purchase,how to pay?
A: Usually, we do T/T in 30% deposit before production,70% balance against copy of B/L. Also payment terms are negotiable depending on customer's request.
Related Products
-
Sc APC Upc Sm Simplex Subscriber Fiber Optic Adapter Sc/APC Sm Simplex with Flange for Fiber Optic Equipment
-

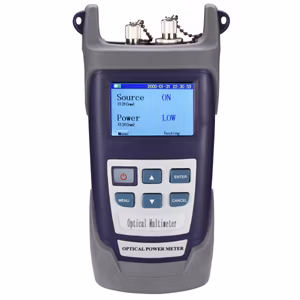

Portable Optical Multimeter Power Meter Light Source Laser Source Tester Instrument Tool
-

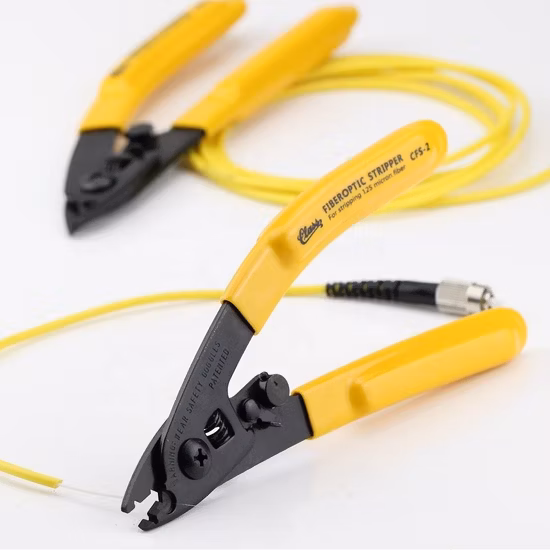

High Quality 2 Hole / 3 Hole Cfs-2 Optical Fiber Cable Stripper
-

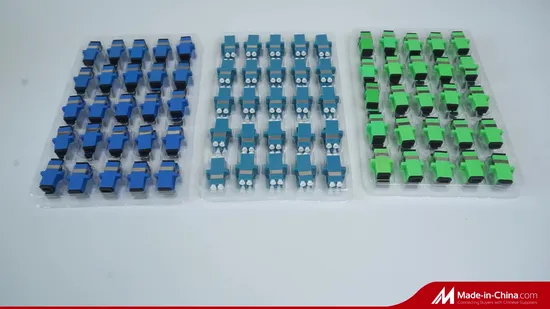

Factory Sc LC Fast Connectors Fiber Optic Fast Connectors
