China Factory in-Line Variable Fiber Optical Attenuator

Overview China factory In-Line Variable Fiber Optical Attenuator Feature 1.High Precise attenuation value2.Perfect envir

Send your inquiry

DESCRIPTION

Basic Info

Model NO.	SC / APC to SC/APC
Ferrule Endface	APC
Shape	Square
Application	Fiber Distribution Frame, Network Equipment, Fiber Module
Connector Type	SC-APC
Brand	OEM
Operating Wavelength (Nm)	1310/1490/1550
Working Temperature	T -25~+75
Ferrule Type	Zirconia Ceramic
Transport Package	Carton
Specification	0-60db
Trademark	SMD
Origin	China
HS Code	8544700000
Production Capacity	10000/Month

Product Description

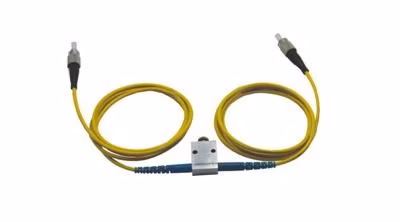

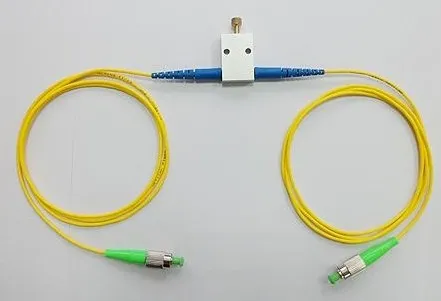

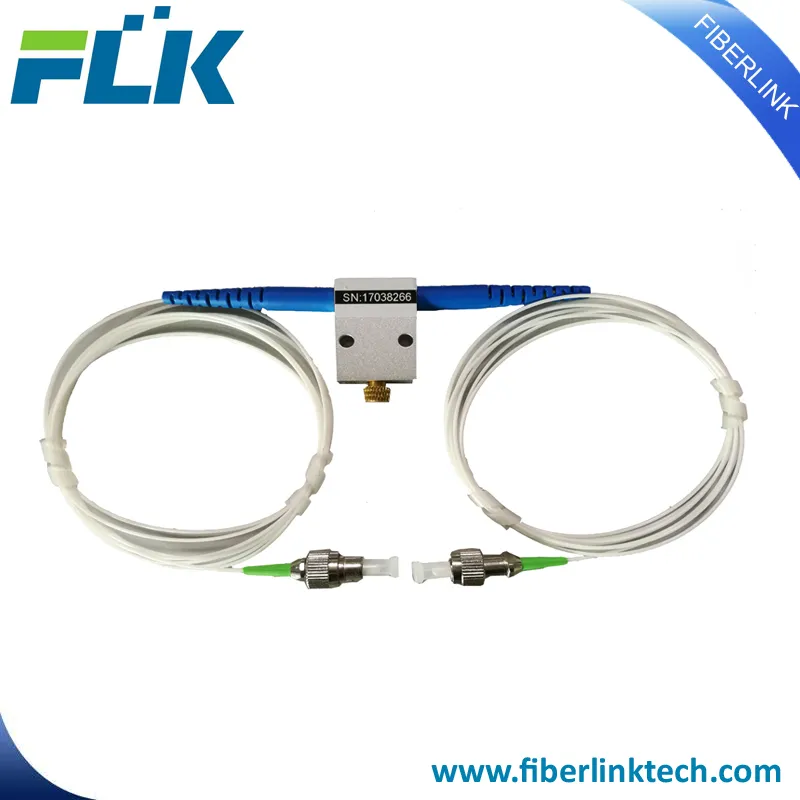

China factory In-Line Variable Fiber Optical Attenuator
Feature

1.High Precise attenuation value2.Perfect environmental stability and reliability3.Low additional loss4.Flawless end face5.Wide attenuation range (variable)

Applications

1.Fiber optical telecommunication system
2.FTTH, CATV, LAN
3.Subscriber loop
4.Fiber optical sensor
5.Testing equipment

Specification

Product name	Fiber optic online adjustable attenuator & Variable Attenuator
Application:	FTTH FTTB FTTX Network
Operating Wavelength (nm):	1310/1490/1550
Applicable fibers:	SM MM G655
Attenuation Tolerance	≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Return Loss	PC:≥50 UPC: ≥55 APC: ≥60
Operating Wavelength	SM:1310/1550nm MM: 850 /1300nm
Working Temperature	T -25~+75
Storage Temperature (ºC):	-40~85
