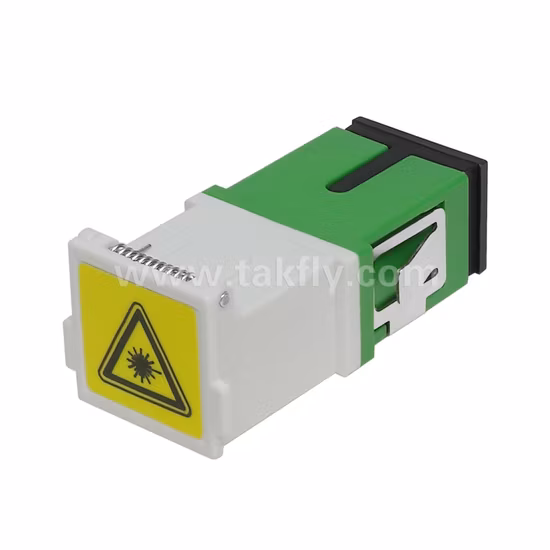

Sc Fiber Optic Adapter with Outer Shutter
SC Adapter with Outer Shutter with Flange Fiber optic adapter, also called coupler, is a small device designed to termin
Send your inquiryDESCRIPTION
Basic Info
Model NO. | SC Fiber Optic Adapter with Outer Shutter OM4 |
Transmission Medium | Singlemode and Multimode |
Structure | SC |
Number of Cores | Single-Core |
Ferrule Endface | PC or APC |
Shape | Rectangular |
Fabrication Process | Welding and One Piece |
Application | Fiber Distribution Frame, Network Equipment, Fiber Module, FTTH Network |
Light Source TYPE | Laser |
Connector Type | Sc |
Alternationg Loss | ≤0.2dB |
Repeatability | ≤0.2dB |
Working Temperature | -40~85°c |
Storage Temperature | -40~85°c |
Trademark | OEM |
Origin | Ningbo, China |
HS Code | 85177990 |
Production Capacity | 20000PCS/Year |
Product Description
SC Adapter with Outer Shutter with FlangeFiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.
DescriptionWe offer SC adapters with integrated shutter applications.Adapters are available in a range of Colors with both phosphor bronze and Zirconia sleeves.The shutter can protect eyes from the laser beam
Applications> Telecommunications> Networking> Industrial controls> Medical> Automotive> AerospaceFeatures> Adapter type: SC/PC blue, SC/APC green available, for multimode, OM3 and OM4 available> With flange or flangeless version
Specification
Parameter | SC Adaptor | |||
SM | MM | |||
PC | UPC | APC | PC | |
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Alternationg Loss | ≤0.2dB | |||
Repeatability | ≤0.2dB | |||
Durability | The change of 1000 interpolation times is less than 0.2dB | |||
Working Temperature | -40~85°C | |||
Storage Temperature | -40~85°C |
