DESCRIPTION

Basic Info

Model NO.	OMT863A/B/C
Specification	190*100*48mm
Trademark	Fiberlink or customized
Origin	China
HS Code	9031801000
Production Capacity	100000pieces/Month

Product Description

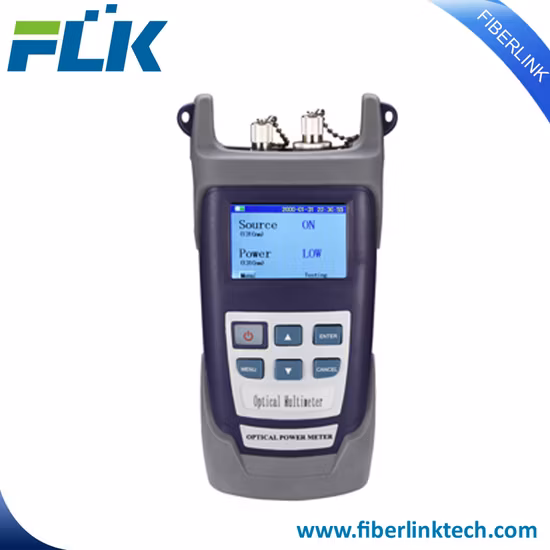

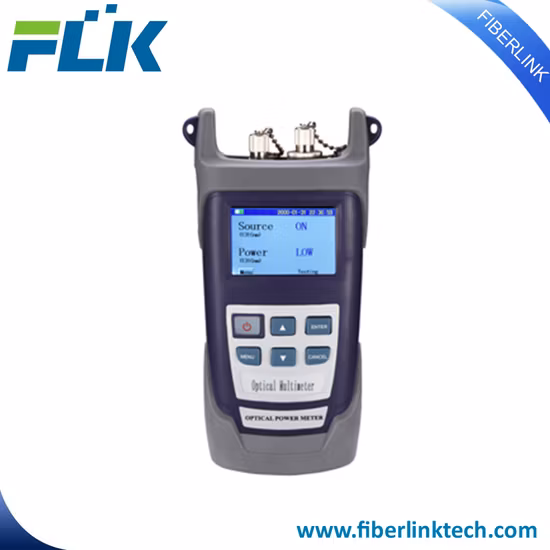

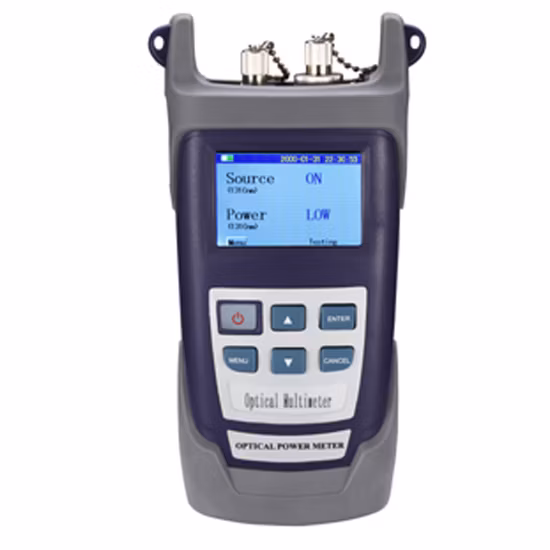

Portable Optical Multimeter integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit which can perform closed-loop tests by incorporating both modules. Individual regimes of operation can also be manually chosen using menu operation to switch functions. A perfect combination to make your optical fiber tests a lot more convenient.

Specifications

Model	OMT863A	OMT863B	OMT863C
	Power Meter + Light Source	Laser Source + Power Meter	Light Source + Power Meter + Laser Source
Power meter
Measurement range	-70~+10 / -50~+26
Type of probe	InGaAs
Range of wave length	800~1700
Uncertainty	±0.2 (5%)
Standard wave length (nm)	850,980,1300,1310,1490,1550
Display precision (dB)	0.01dB
Light source
Output wavelength (nm)	1310/1550nm (other optional)
Measuring Range(dBm)	-30dBm--23dBm
Accuracy	+10 nW(5%)
SM Output Power(dBm)	>= -2dBm
MM Output Power(dBm)	>= -20dBm
Laser Source
Output Power (mw)	1,5,10,20,30mw (optional)
General Specification
communication	RS232
Operating Temperature	-10~+60
Storage Temperature	-25~+70
Battery Operating Time	>15h
Display	2.4TFT LCD
Dimension (mm)	190*100*48mm
Power Supply	Li battery (9V)
Weight	280g
