Fiber Optic Sc/LC/PC/Upc/APC Filed Fast Connector Fast Connector is a perfect solution for filed working and FTTH connec

Send your inquiry

DESCRIPTION

Basic Info
Model NO. SC/LC/FC-UPC/APC
Application Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE Laser
Connector Type FC-APC
Brand OEM
Transport Package Carton
Specification 57mm
Trademark Fibconet/OEM
Origin Ningbo, China
HS Code 3901100001
Production Capacity 700, 000 PCS/Month
Product Description

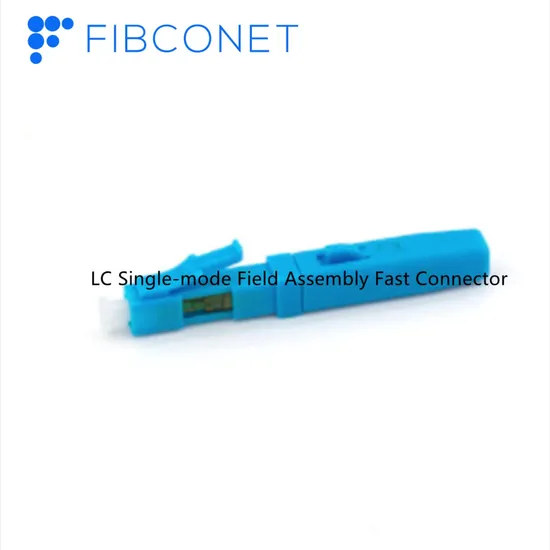

Fiber Optic Sc/LC/PC/Upc/APC Filed Fast Connector

Fiber Optic Sc/LC/PC/Upc/APC Filed Fast Connector

Fast Connector is a perfect solution for filed working and FTTH connection. It is widely used where needed for quick connection, providing a quick assembly and stable performance. When engineers work in the field for installation, maintenance, repair of optical fiber, or FTTH indoor termination, they can use it easily because it has no epoxy and no polishing. Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule end face quality. This has great help to protect user's equipment interface and improves the connector loss.
Features:
Compatible with both 3mm drop cable and 3x2mm flat cable Fiber Optic Fast Connector
Fast and easy installation (within the 90s) Fiber Optic Fast Connector
Adopted fiber pre-installed structure. Fiber Optic Fast Connector
Low insertion loss. High return loss. Fiber Optic Fast Connector
Pressing position use newly special structure design, without infusion, grind and waste material. Fiber Optic Fast Connector
Use embedded fiber type structure, ensuring the high installation quality, success rate, and quick installation. Fiber Optic Fast Connector
Easy for assembling with the mechanical splice and no polishing Fiber Optic Fast Connector
Minimize the defect rate by features of removal and reusable.
Datasheet:
Applicable for: Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable Optical fiber diameter: SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B )Tight buffer diameter: 250μmFiber mode: Single-modeOperation time: About 100s(no fiber cut)Insert loss: ≤ 0.3dB(1310nm & 1550nm)Return loss: > 50db(PC), > 55db(UPC), > 65db(APC)Fastening strength of naked fiber: >5 NFastening strength of naked fiber holder: >10 NTensile strength: >50 NUsing temperature: ‐40~+75ºCOn‐line tensile strength (20 N): △ IL ≤ 0.5dB △ RL ≤ 5dBMechanical durability (500 times): △ IL ≤ 0.5dB △ RL ≤ 5dBDrop‐off test (drop‐off height 4m,once per direction, totally 3 times): △ IL ≤ 0.5dB △ RL ≤ 5dB
Application:
Premise environments ;
Connections at the desk for LAN environments;
Patch panels;
Direct equipment termination;
Fiber to the Subscriber (FTTx) applications;
Repair/replacement requirements ;
Equipment test leads.

Fiber Optic Sc/LC/PC/Upc/APC Filed Fast Connector

Fiber Optic Sc/LC/PC/Upc/APC Filed Fast Connector

Fiber Optic Sc/LC/PC/Upc/APC Filed Fast Connector

Fiber Optic Sc/LC/PC/Upc/APC Filed Fast Connector


Starting with the Copper age in 1992, FIBCONET has gone through nearly 18 years in the fiber optic communication area.
Now FIBCONET has 3 manufacturing centers, Ningbo, Guizhou, and Northeast China, covering more than 10,000 sqm,
owning 800 well-trained staff and engineers, reaching the production capacity of PLC Splitter in 300,000 pcs and fiber optical
connectors in 10 million pcs per month. As the national high-tech enterprise, FIBCONET also strives for more efforts in innovation.
50 patents, 15 invention patents have been attained.

FIBCONET focus on the fiber optical components, such as PLC splitter,
patch cord, , adapter, connectors, etc. Especially for the PLC splitter, can work in an extremely cold environment, even in the -50
centigrade degree, like in Russia, FIBCONET's PLC can still help transmit the optical signal very well, And if you hope to get the
0.1 dB for insert loss on your connectors, which is hard for the regular production, FIBCONET also can reach you.

FIBCONET supplies goods all over the world through trading companies and agents, like Corning in the USA, Vodafone in Europe,
Furukawa in Japan., etc. ISO9001, Rohs, and TLC certificates have already been approved by the market and our customers.
With the new corporate vision: To be the top supplier for the fiber optical components, "Keep connecting" is our Motto, not only means
that we produce the connectors and connect the fiber optic equipment, but also connect with the new technology, connect with every
FIBCONET person connect with our customers worldwide.

1. Are you a manufacturer or trade company? Fiber Optic Fast Connector

We are the manufacturer with more than 20 years of history.2. What is your fiber brand? Fiber Optic Fast Connector

Our fiber brands include : YOFC, Corning, Fiber Home, J-fiber, POFC3. What is your main product? Fiber Optic Fast Connector
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box. Besides that, we have very good prices for part of the fiber tools!4. How can we place an order? Fiber Optic Fast Connector

After the agreement is made on the product parameters, we will make a proforma invoice for you to confirm. After advance payment (deposit) is received, we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have a shipping forwarder, we can ship them by our agent shipping company which offers a competitive freight cost.5. What is the quality of your products?All of our products are of high quality. We promise a 100% recall policy if products are unqualified, and we can write it into our contract!6. How do you arrange the shipping?Solution A: Fibconet takes care of everything. Clients only need to collect cargo in a local port or wait for cargo delivery to their office. There are two types of shipping methods available: by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four to seven days). Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follows the shipping company's instructions and finishes the delivery.7. How can you guarantee the delivery time?To avoid the delay, we have built a complete and professional procedure system from production to delivery. We have rich experience in production and delivery. We can regulate the penalty clause in the contract for the late delay.8. What's your best price for your passive fiber optic product? Based on the quality and quantity of goods, we would quote the best matching price for you all the time.9. What is your quality control for your fiber optic product?1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and meet exporting quality level demand.2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface, physical test, and optical test. All the products are 100% tested.3. Optical Test. Our products are strictly tested by IEC and ITU standards.4. We have a 30% spot test by Quality Assurance Department after the products are finished. 10. Why choose Fibconet Fiber Optic to cooperate? 1. We have a first-class production line and a strict quality management system.2. We have a professional procedure system and a big production capacity to guarantee fast delivery and on-time shipment.3. We can provide the most competitive price to meet your budget.4. We also design and innovate new products based on our rich experience.5. We have a professional team to provide comprehensive one-stop service for you.Please always feel free to contact us for any questions, it's our honor to be in service to you!
